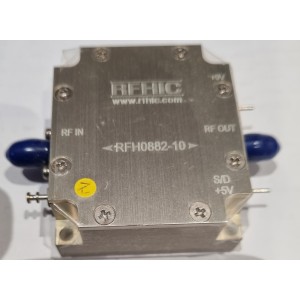

RFH0882-10 38 dBm High Power RF Amplifier 869 - 894 MHz
- Brand: RFHIC
- Product Code: RFM0424-10
- Availability: In Stock
-
USD $100.00
RFH0882-10 38 dBm High Power RF Amplifier 869 - 894 MHz
| Amplifiers | |
| Output IP3 | + 50 dBm |
| Connectors | |
| Connector 1 | SMA Female |
| Connector 2 | SMA Female |
| Frequency | |
| Frequency Min | 869 MHz |
| Frequency Max | 894 MHz |
| Gain Value | |
| Gain | 16 dB |
| Operating Voltage | |
| Voltage DC | 9 VDC |
| Semiconductor Device Parameters | |
| Amplifier Type | High Power > 3 watts, High Power > 3 watts |
| Impedance Ω | 50 |
| Mounting Type | Bolt Down |
| Noise Figure | 5 dB |
| Operating Current | 1200 mA |
| Output P1dB | 38 dBm |
| Package / Case | RFM |
