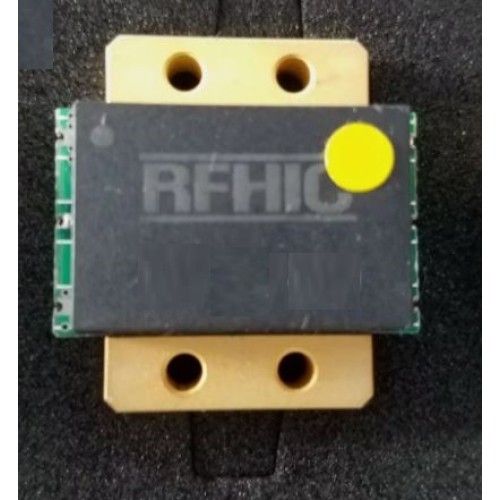

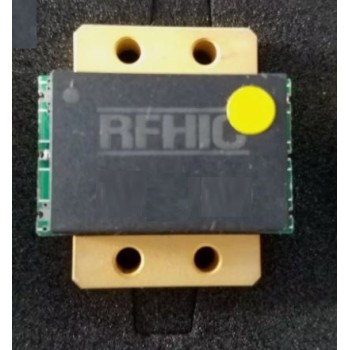

RFM0424-10 39 dBm High Power RF Amplifier 350 - 450 MHz
- Brand: RFHIC
- Product Code: RFM0424-10
- Availability: In Stock
-
USD $50.00
RFM0424-10 39 dBm High Power RF Amplifier 350 - 450 MHz
| Amplifiers | |
| Output IP3 | + 50 dBm |
| Frequency | |
| Frequency Min | 350 MHz |
| Frequency Max | 450 MHz |
| Gain Value | |
| Gain | 15 dB |
| Operating Voltage | |
| Voltage DC | 9 VDC |
| Semiconductor Device Parameters | |
| Amplifier Type | High Power ( 5 + Watts ) |
| Impedance Ω | 50 |
| Mounting Type | Bolt Down |
| Noise Figure | 5 dB |
| Operating Current | 1500 mA |
| Output P1dB | 39 dBm |
| Package / Case | RFM |
