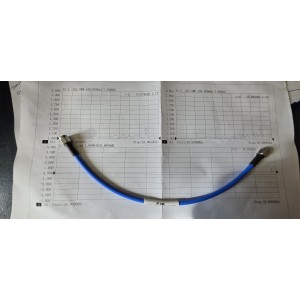

DC - 18 GHz SMA Male to SMA Male Low PIM Cable Assembly, 250 mm RG-402
- Brand: RF Components
- Product Code: SF141-SMAMSMAM-250MM
- Availability: In Stock
-
USD $16.25
DC - 18 GHz SMA Male to SMA Male Low PIM Cable Assembly, 250 mm RG-402

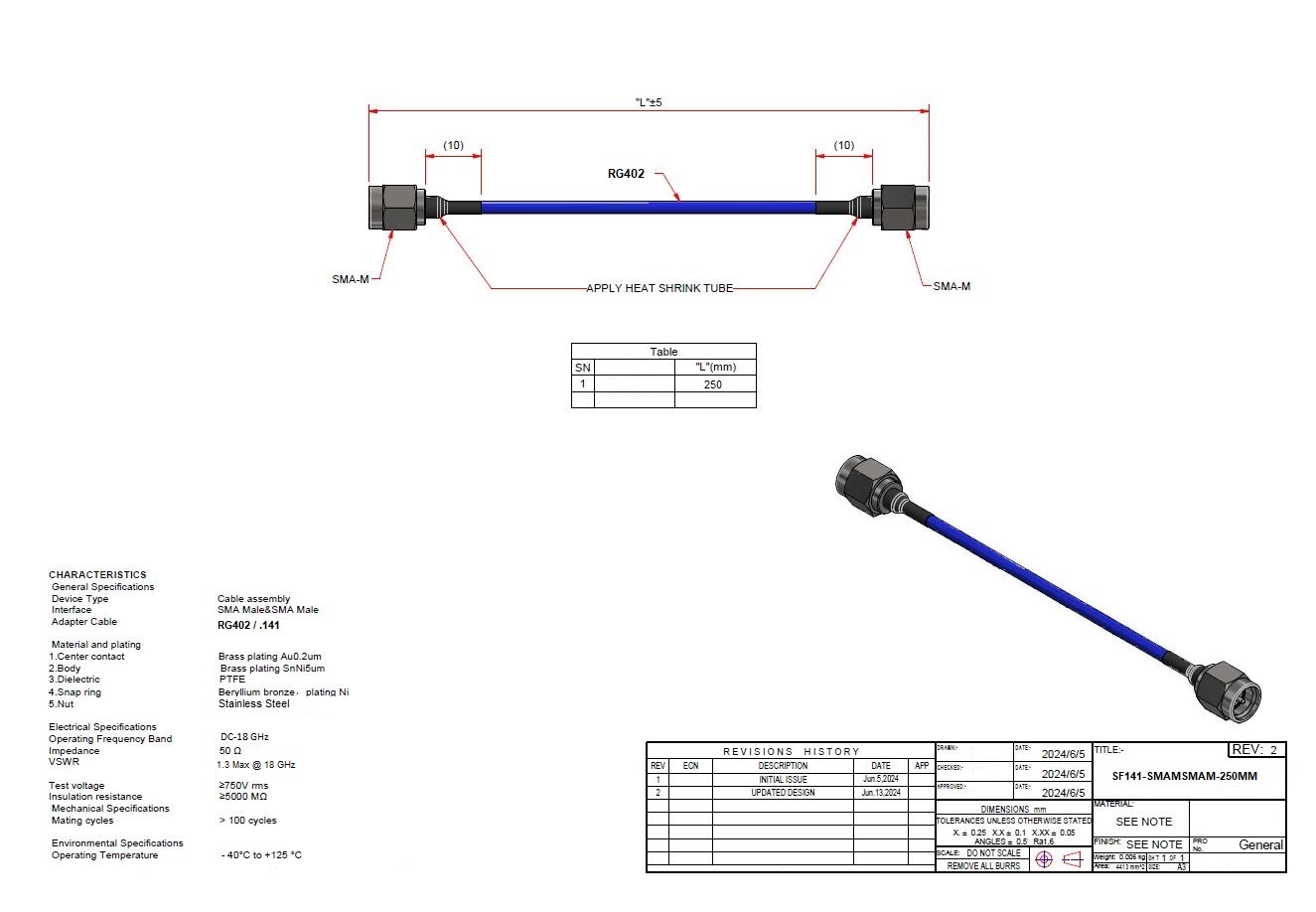

DATA SHEET
| Cable Length | |
| Cable Length | 250 mm |
| Cable Type | |
| Connection / Cable Type | RG402 - .141 |
| Connector Orientation | |
| Connector 1 Style | Straight ( Inline ) |
| Connector 2 Style | Straight ( Inline ) |
| Connectors | |
| Connector 1 | SMA Male |
| Connector 2 | SMA Male |
| Frequency | |
| Frequency Max | 18000 MHz |
| Impedance | |
| Impedance Ω | 50 |
| Mechanical Phase Stability | |
| Mechanical Phase Stability | No |
| Phase Matched | |
| Phase Match Option | No |
| PIM Rating | |
| PIM Rated | Yes |
