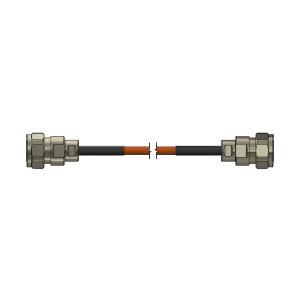

DC - 6 GHz 4.3-10 Male to 4.3-10 Male Cable Assembly, 5000 mm RG-223
- Brand: RF Components
- Product Code: 4310M-4310M-RG223-500
- Availability: In Stock
-
USD $38.88
DC - 6 GHz 4.3-10 Male to 4.3-10 Male Cable Assembly, 5000 mm RG-223

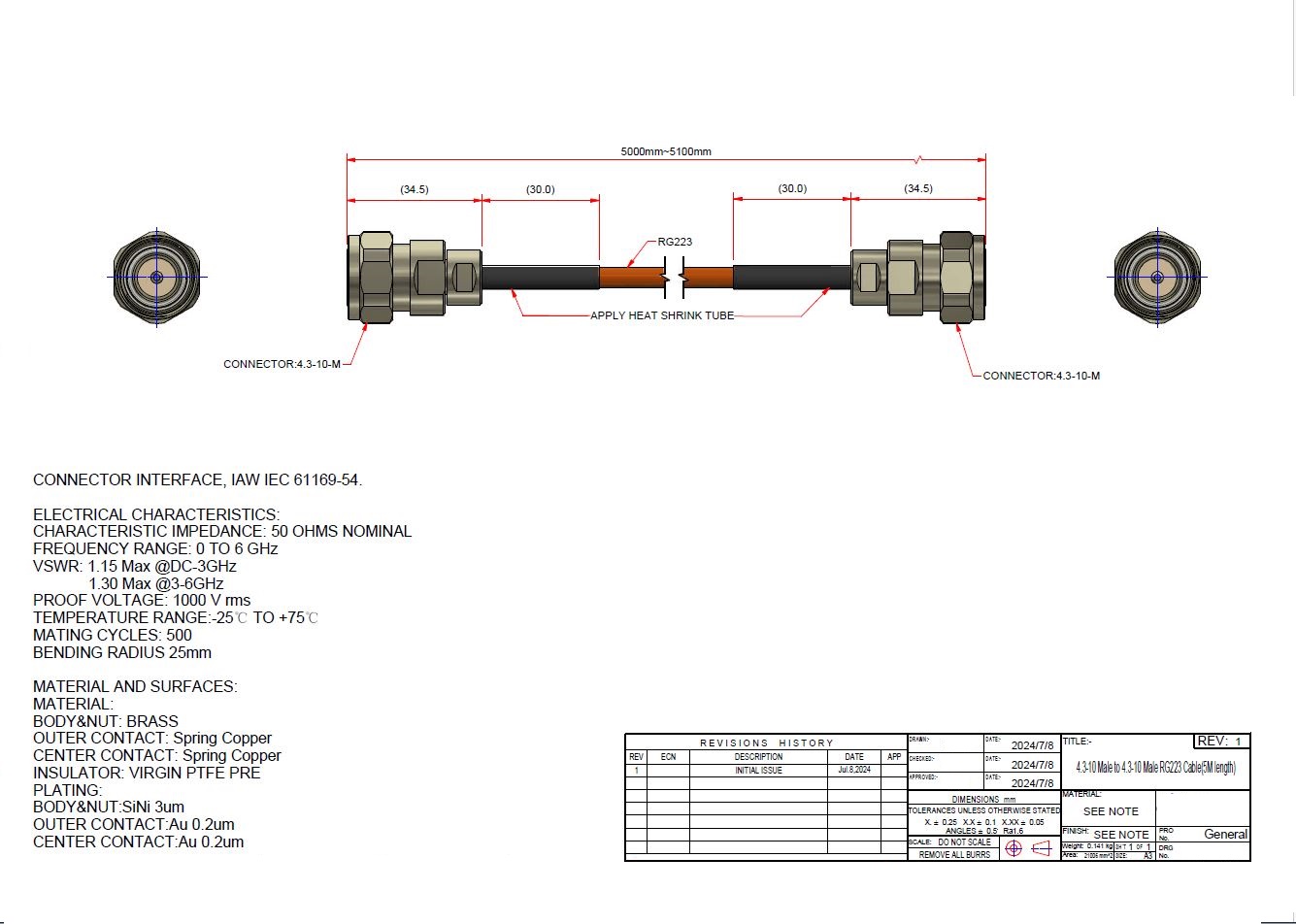

DATA SHEET
| Cable Length | |
| Cable Length | |
| Cable Type | |
| Connection / Cable Type | RG-223 |
| Connector Orientation | |
| Connector 1 Style | Straight ( Inline ) |
| Connector 2 Style | Straight ( Inline ) |
| Connectors | |
| Connector 1 | 4.3-10 Male |
| Connector 2 | 4.3-10 Male |
| Frequency | |
| Frequency Max | 6000 MHz |
| Impedance | |
| Impedance Ω | 50 |
| Mechanical Phase Stability | |
| Mechanical Phase Stability | No |
| Phase Matched | |
| Phase Match Option | No |
| PIM Rating | |
| PIM Rated | Yes, No |
